Dust Collector

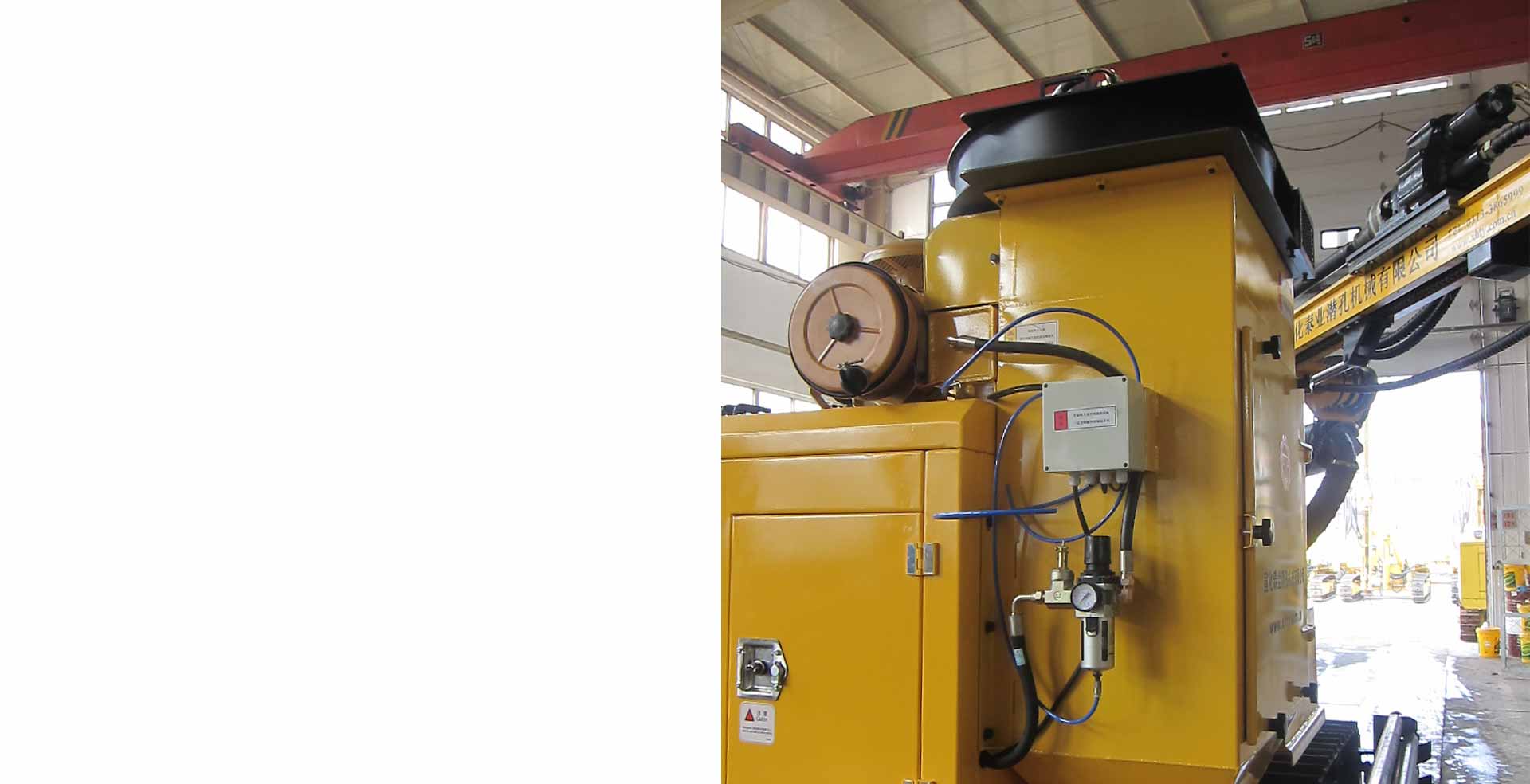

Choosing a rig equipped with TAIYE RDC dust collector, the dust in the air is greatly reduced, the air quality in the working environment is effectively improved, and the operator is protected from silicosis. At the same time, the engine configured on the rig and the air compressor inhales pure air to prolong Engine life.


RDC series dust collector is a filter cartridge dust collector designed by absorbing the advanced technology from domestic and foreign products. The dust collector uses a high-pressure large-flow pulse valve to perform pulse-by-pulse cleaning of the filter cartridge, which has the kinetic energy of dust removal. This type of down-the-hole drill rig parts sold at TAIYE holds the advantages of large and high purification efficiency, simple and compact structure, easy installation, and convenient maintenance.


ModelRDC-140RDC-165RDC-200
Maximum adaptable aperture(mm)152165200
Aspiration pipe diameter(mm)152152203
Displacement of hydraulic motor(ml/r)101012
Rated pressure of hydraulic motor(Mpa)353535
Number of filter elements162430
Control powerDC24VDC24VDC24V
